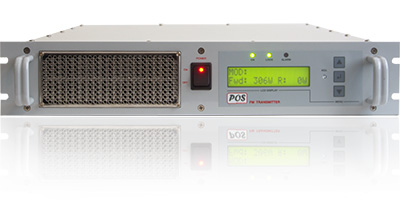

Low Cost FM Transmitter POS-300L Series

Low cost FM transmitter for audio broadcasting, able to transmit in the band between 87.5 and 108 MHz. Built in stereo coder, with Left and Right audio input signal. Continuously adjustable output power from 40 to 300 watt from front panel . Easy to read main parameters on the large LCD display. They are designed in aluminum box to be contained in a 19” rack of 2U.

Brochure...

Technical Specifications

Panel size	485 mm (19") x 88 mm (2U)
Depth	550 mm
RF output power	40 to 300 watts, adjustable
RF output connector	N - type female
RF output impedance	50 Ohm
Frequency range	87.5 MHz ÷ 108 MHz
Frequency setting	software programming
Frequency step	10 KHz
Frequency error	< +-300 Hz
Frequency deviation	< +-75 Hz
Spurious and Harmonics suppression	respects FCC and CCIR standards
A.C. power supply	200 V ÷ 260 V

About Lost Cost FMTransmitter POS-300L Series

	AUDIO DESIGN
	Design base on SMD technology that guarantee for low noise and reliability. The audio features are low distortion and a high noise/signal ratio.

LARGE LCD DISPLAY
Front panel design for large LCD display. It mean the LCD display area to 95mm(wide) and 20mm(high). They are display for necessary for customer check. It is easy to use and display.

	OUTPUT POWER ADJUSTABLE
	Easy to adjustable RF output power from front panel. The design base on vary variable resistor (trimpot) to increase or decrease voltage for driver module.
